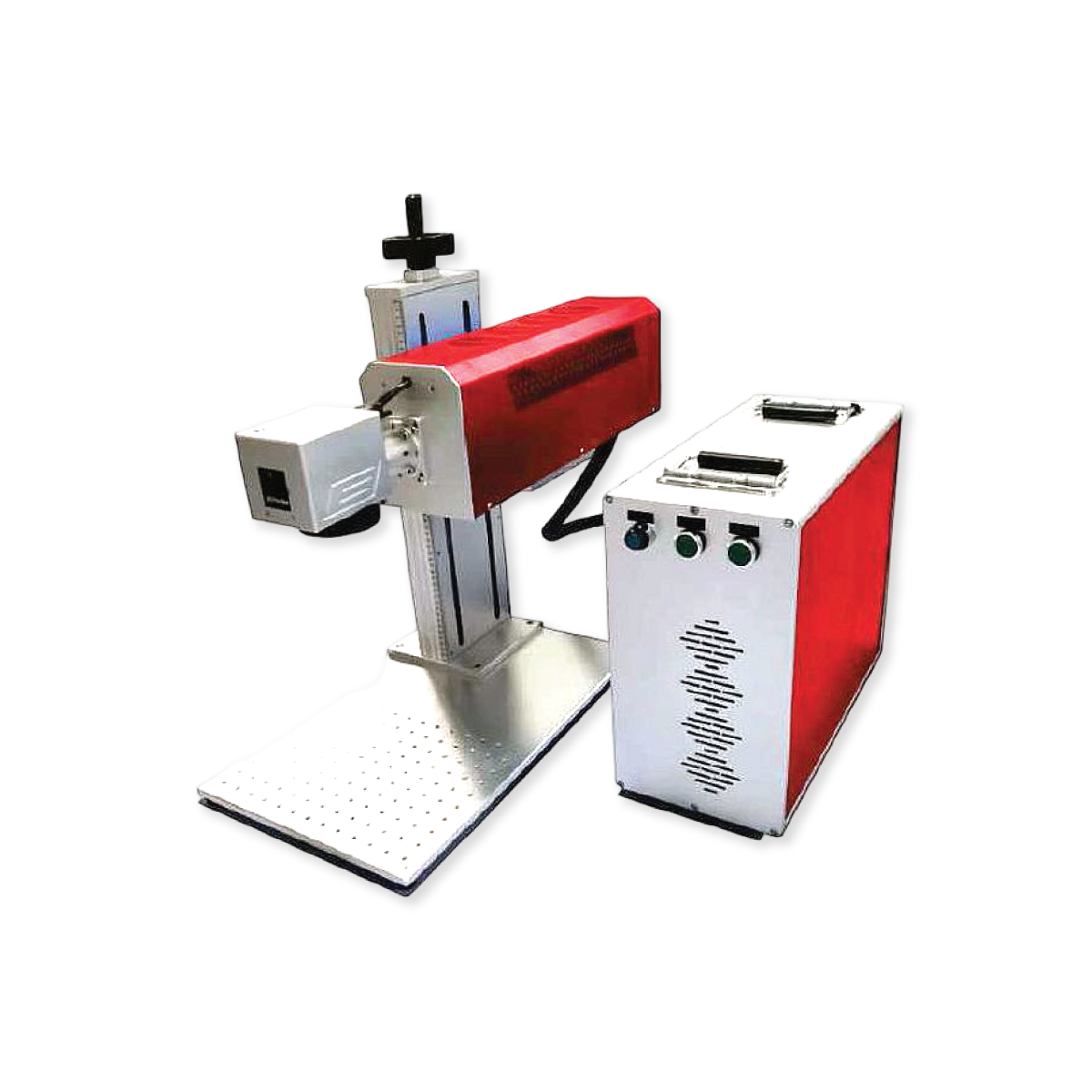

If you need a high speed, precision-engraving CO2 laser, our hybrid machine with a Galvo-type head (usually used on fiber lasers) is your answer. With no moving parts except the “flying” mirrors, reliability and accuracy is assured. The PLT-CO-GALVO can engrave most non-metal materials quickly and accurately. The solid-state metal laser will outlast any glass laser tube.
Out of stock
If you need a high speed, precision-engraving CO2 laser, our hybrid machine with a Galvo-type head (usually used on fiber lasers) is your answer. With no moving parts except the “flying” mirrors, reliability and accuracy is assured. The PLT-CO-GALVO can engrave most non-metal materials quickly and accurately. The solid-state metal laser will outlast any glass laser tube.
Laser power : 30W or 50W
Working area : 250*250mm
Laser source : CO2 laser- RF Metal tube
Max marking depth : ≤0.5mm
Max marking speed : ≤12000mm/s
Marking lines : 1-10 lines
Minimum line width : 0.1mm
Minimum character : 0.15mm
Repeatability accuracy : ±0.002mm
Resolution ratio : 0.1mm
Operating system : Windows
Control software : JCZ - EZCad 2
Formats supported : jpg, gif, ai, dxf, etc.
Unit power : ≤1.2KW
Operating temperature : 5 C - 40 C
Relative humidity : ≤ 90%
Supply Voltage : 220V/50Hz
PLTCOGALVO.pdf
