Out of stock

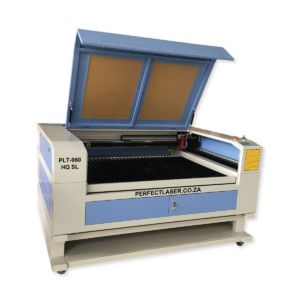

| Available in 80W / 100W The PLT-960 HQ is our top-of-the-range mid-size laser, designed mainly for the European market. Major advantages include a 100 Watt laser tube, Ruida controller, high-precision 3-phase stepper motors, lens and mirrors imported from Singapore, honeycomb and blade table, full front/back pass-through capability, autofocus mechanism, high-quality drive belts, imported linear guide rails, and the finest build quality available - just like its siblings, the PLT-6040 and PLT-1390 HQ range. The body of the machine is 2-3mm steel (as opposed to 1-1.5mm on most others). With a 12-month warranty on the machine and a 6-month warranty on the tube, this is the best laser in its class that money can buy. Available in either a Floor-Standing or SlimLine variant. The Floor-Standing model has a Z-Axis travel of 300mm, while the SlimLine has a Z-Axis travel of 150mm. | |||
| WORK TABLE SIZE : | 900(x) mm x 600(y) mm | Z-AXIS : | MOTORISED (150mm or 300 mm) |
| TABLE TYPE : | HONEYCOMB AND BLADE | CUTTING THICKNESS : | 0 - 12 mm depending on material |
| LASER TUBE : | 100 WATT | DRIVING METHOD : | 3-PHASE STEPPER MOTOR |
| ENGRAVING SPEED : | 0 - 500 mm/sec | CUTTING SPEED : | 0 - 200 mm/sec |
| RESOLUTION : | ± 0.05 mm / 1000 DPI | WATER COOLING : | 5200 DUAL-PORT INDUSTRIAL CHILLER (NOT INCLUDED) |
| CONTROLLER : | RUIDA 6445 | WEIGHT : | 220 kg |
NOTE : OPERATES WITH WINDOWS XP/7/8/10. | |||
PLT960HQSeries.pdfDownloadShowing 3 installation photos.
