The PLT-9070 is a high-performance CO₂ laser cutting system engineered for precision label, fabric and textile processing. Featuring an integrated overhead CCD camera for automatic pattern recognition, a continuous conveyor feeding system, and a large-format work area, this machine delivers automated, high-volume production for garment manufacturers, textile processors, label printers, and soft-goods producers.

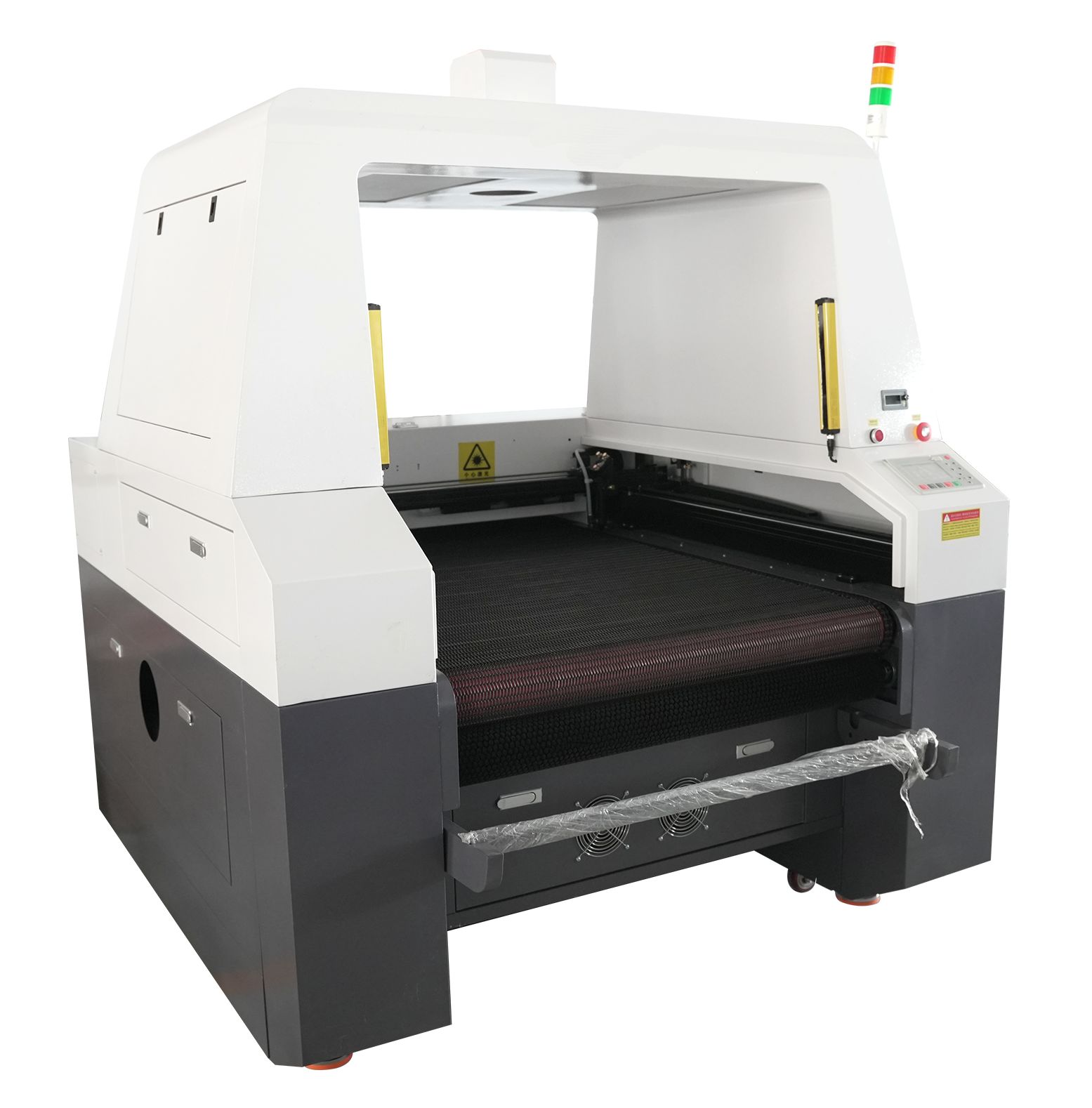

The enclosed gantry design with safety light curtains ensures operator protection while maintaining full visibility of the cutting process. The aviation-grade aluminium mesh conveyor belt provides stable material transport with vacuum hold-down to keep material flat during cutting.
| Feature | Description |
|---|---|
| CCD Camera Vision System | Overhead camera automatically detects printed patterns and registration marks for precise cutting alignment |
| Auto-Feed Conveyor System | Continuous roll-to-cut workflow with automatic skew detection and correction |
| Honeycomb/Brush Worktable | Vacuum-assisted hold-down keeps delicate fabrics flat and distortion-free |
| Safety Enclosure | Fully enclosed cutting chamber with light curtain guards and emergency stop |
| Status Tower Light | Red/amber/green stack light for at-a-glance production status |
| DSP Control System | User-friendly interface with support for popular design software |
| Specification | Details |
|---|---|
| Model | PLT-9070 |
| Working Area | 900 × 700 mm |
| Laser Type | CO₂ Sealed Laser Tube, 10.6 μm |
| Laser Power | 100W (130W / 150W optional) |
| Cutting Speed | 0 – 600 mm/s |
| Engraving Speed | 0 – 1,000 mm/s |
| Positioning Accuracy | ≤ ±0.02 mm |
| CCD Camera System | Camera uses a Sony® IMX183 sensor to provide high-quality images and transmit images in real time, and its max. frame rate can reach 5.9 fps in full resolution. |
| Conveyor System | Automatic feeding with skew detection |
| Drive System | Stepper motor with belt/rack transmission |
| Cooling System | Water cooling (industrial chiller) |
| Exhaust System | High-power exhaust fan with smoke extraction |
| Supported Formats | PLT, DXF, AI, BMP, DST, DWG, LAS |
| Compatible Software | CorelDRAW, Adobe Illustrator, AutoCAD, LightBurn (Any vector program) |
| Power Supply | AC 220V ±10%, 50 Hz |
| Working Environment | Temperature 0–45°C, Humidity 5–95% (non-condensing) |
Garment & Apparel: Sportswear, swimwear, activewear, fashion fabrics
Home Textiles: Curtains, upholstery, bedding, table linens
Automotive Interiors: Seat covers, floor mats, headliners
Industrial Textiles: Filters, non-wovens, geotextiles, insulation
Soft Goods: Plush toys, leather goods, footwear components
Plastics: Labels, DTF material, stickers, etc.
Precision Pattern Cutting: The CCD camera system reads printed designs in real time and cuts exactly along outlines — ideal for printed labels and complex cutting work
Sealed, Fray-Free Edges: Laser heat melts synthetic fibers for clean, sealed edges with no secondary finishing required
Continuous Production: The auto-feed conveyor eliminates manual loading, allowing batch processing of rolled materials
Material Versatility: Cuts cotton, polyester, silk, denim, leather, faux leather, felt, fleece, and technical textiles
Enclosed cutting chamber with interlocked access
Safety light curtains at loading zone
Emergency stop buttons
Fire suppression-ready design
