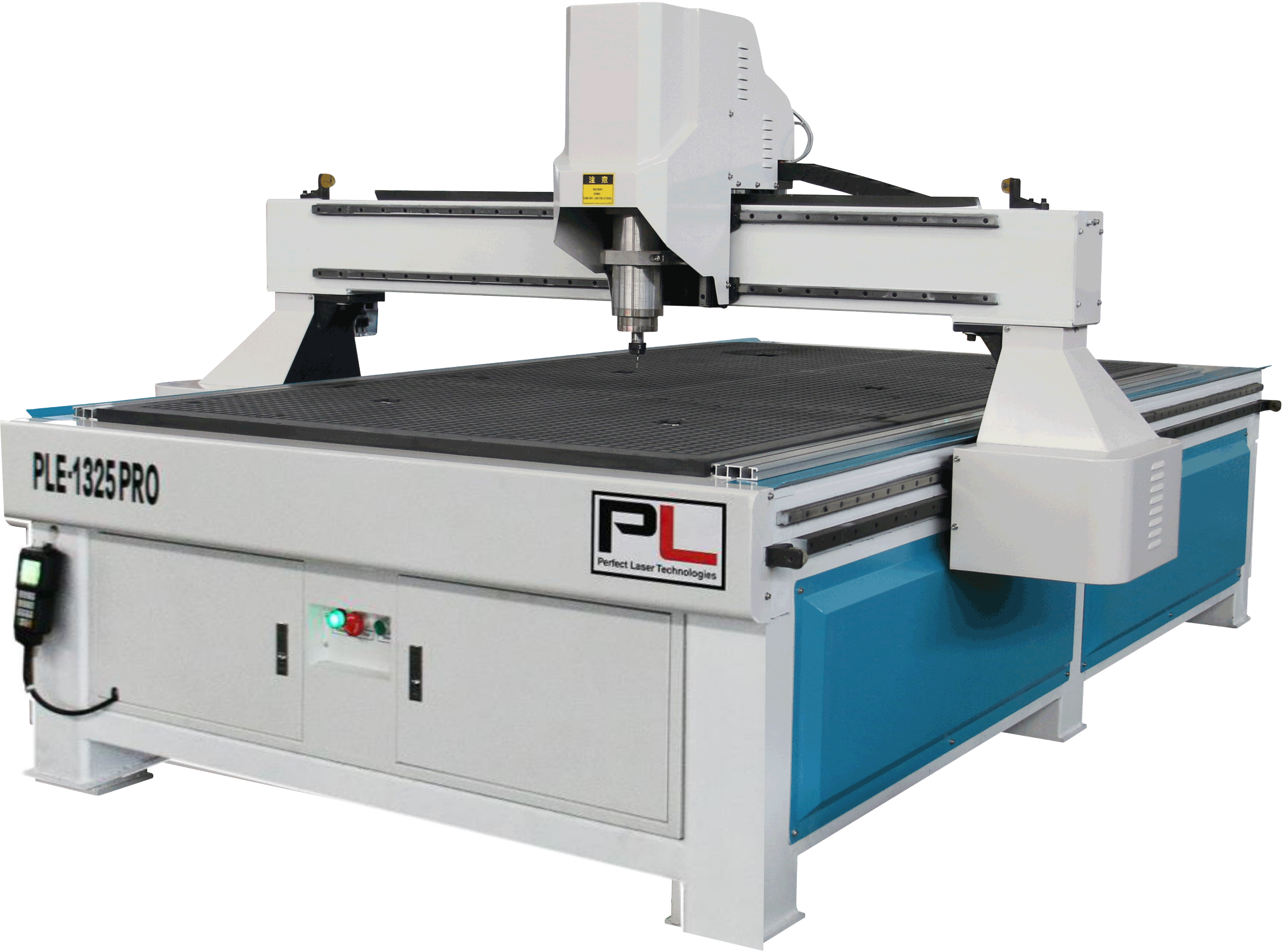

PLE-1325 CNC Router Pro (Vacuum bed)

SKU: 1393_machine Categories: ,

1 in stock

Product Specifications

The best value industrial proposition workhorse for a large job, high-speed precision machining. From prototyping to full-scale manufacturing, the PLE-1325 can cut and engrave most materials quickly and accurately. Perfect for large-scale production and just-in-time manufacturing.

Uses industry-standard software
Programmable motorised Z-axis
Pre-loaded linear bearings
Low maintenance, high reliability
Solid cast steel frame, on heavy-duty lockable wheels
Durable vacuum table with 7.5ke vacuum pump
Waterbed with a water circulation system is an added cost extra
Shipped to you as a completely pre-assembled and factory-tested system
No PC is required to operate: plug in a USB stick and copy your G-code onto the controller
Cuts and engraves a wide range of materials: wood, plastics, composites, non-ferrous metals
Ideal for engraving of hard materials, such as stone and granite
No noxious gases, liquids, or oils are used or caused by the machining process
Environmentally friendly system: quiet and clean with low electrical consumption
We hold spares in Cape Town and Johannesburg, ensuring minimum downtime for your business.

Spindle power:5.5kW water-cooledMax. spindle speed:24000 RPM
Standard collet:ER32Control system:RichAuto A11 DSP
Not 4th axis compatible:Please enquire about the 4th axis / rotary options (special order)Axis Drive (X, Y & Z):Stepper drive
Working area X & Y:1300 x 2500mmZ-travel:150mm (higher gantry available on special order)
Maximum working speed:10m/minMaximum travel speed:15m/min
Command code:G-codePower source:380V 3-phase
Repositioning accuracy:0.025mmFrame:solid cast steel frame, on heavy-duty lockable wheels
Net weight:1000kg,Warranty:12 months on the machine, 6 months on the spindle and VFD
