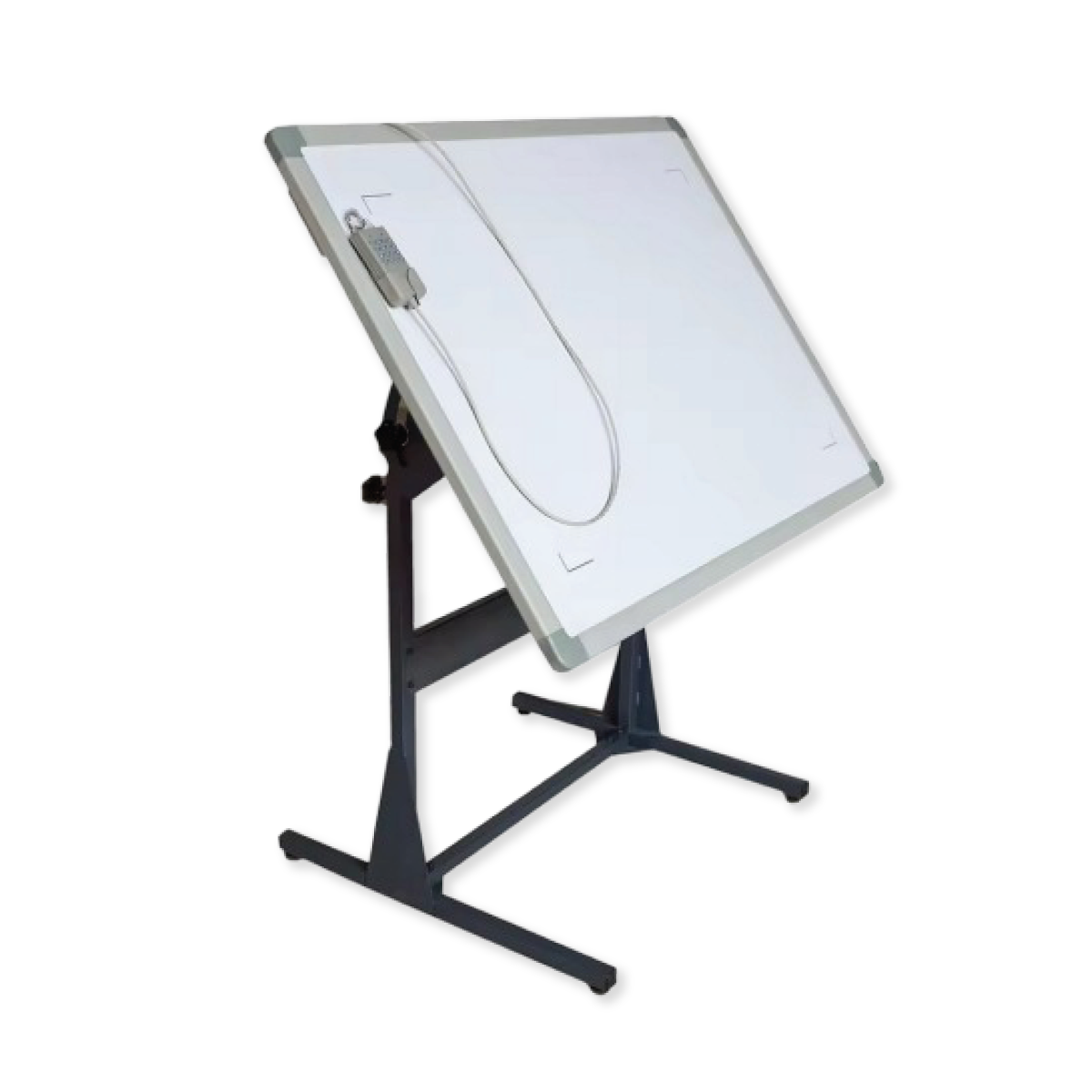

The PL Digitizer is a high-performance, low-cost, computer input device suitable for applications such as CAD, digital cartography, GIS, etc. The resolution is 2540 lines/inch, with two levels of 0.203mm and 0.127mm, supporting more than 30 standard data formats. The command mode is compatible with major similar products, and can be connected to relevant mainstream application software in the market. Working area 1200x1500mm. The point picking tool can be selected with a cursor and pen, and is compatible with mouse functions.
System requirements:
There is an RS-232 serial interface that can be connected to a PC or workstation, so you only need application software that can connect to a digitizer. Specification parameters: Mechanical connection: RS-232 serial interface Baud rate: up to 19200 Output rate: up to 100PPS Technology: electromagnetic Power specifications: 220V+10%, 50HZ Guarantee: one-year effective guarantee
| Specification | Value |
|---|---|
| Working Range | 1500 x 1200mm |
| Precision | ±0.25mm |
| Working Current | 800mA |
| Port | RS-232 serial interface |
| Working Temperature | 10°C - 40°C |
| Max Data Transmission | 200 PPS |
| Contact Height | Up to 5cm |
| Lines / inch | 1000, 400, 200, 100 |
| Check Bit | Supports EVEN, ODD, NONE |
| Work Modes | Supports POINT, LINE, STREAM, TRACK, REQUEST, INCREMENT, DELTA MODE |
| Working Voltage | 12V AC |
| Power Supply | 220V 50Hz |
| Vernier Mode | 16 Keys |
| Response Speed | 0.01 |
| Pixels | Up to 2540 LPI |
| Data Bits | Supports 7 or 8 |
